New listing of industry artifact

XCMG 5180TXQZ6 Wall cleaning vehicle

Beauty is more talented.

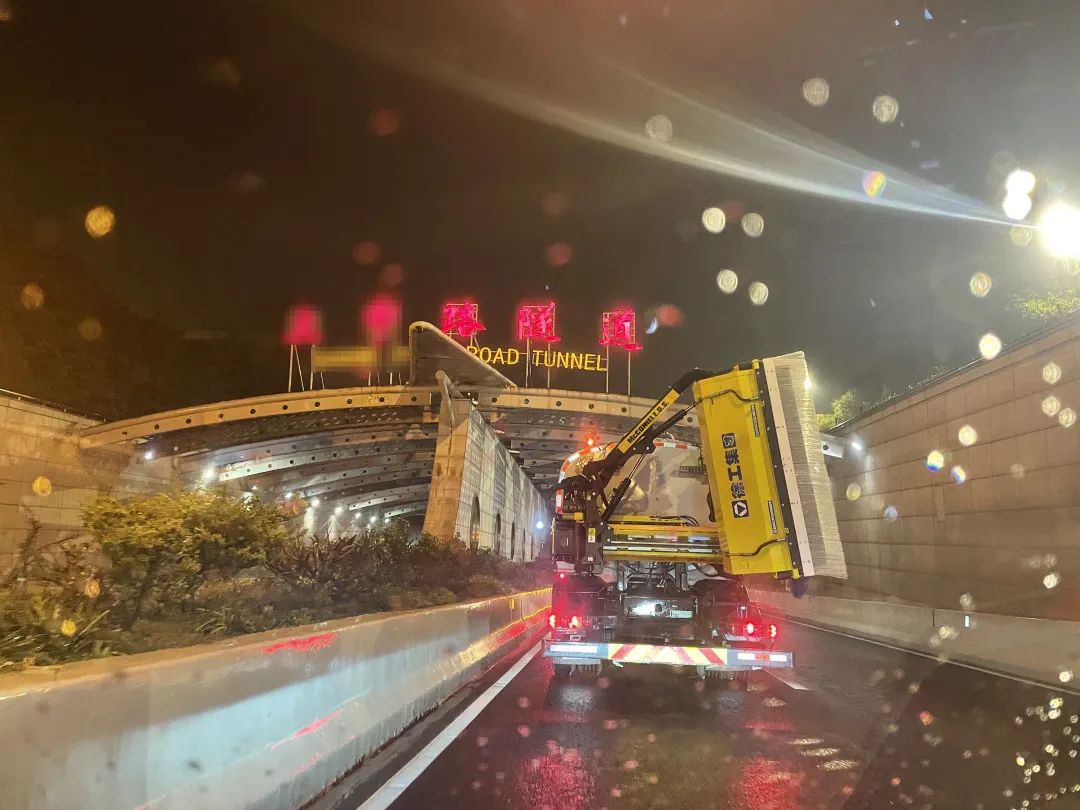

Appeared in a tunnel in Shanghai

Close to the market，Stand up to the tide

With the rapid development of the city,，Viaducts and tunnels have become the necessary infrastructure to alleviate traffic pressure everywhere.，It is an important link to improve traffic efficiency.，But there are also some hidden worries.。

Because that internal space of the tunnel is relatively close,，Vehicle exhaust and dust are difficult to discharge effectively.，It is particularly easy to adhere when mixed with engine oil.、Deposited on the walls inside the tunnel，Form a visible stain。

These stains can weaken the lighting inside the tunnel.，Reduce air quality，Thereby affecting the traffic safety in the tunnel.，Therefore, the cleaning and maintenance of the tunnel wall must be a long-term and continuous work.。At present, manual cleaning is still the mainstream of tunnel cleaning，The operation process is time-consuming and laborious.、Long lane occupation time，It brings about frequent security risks.。

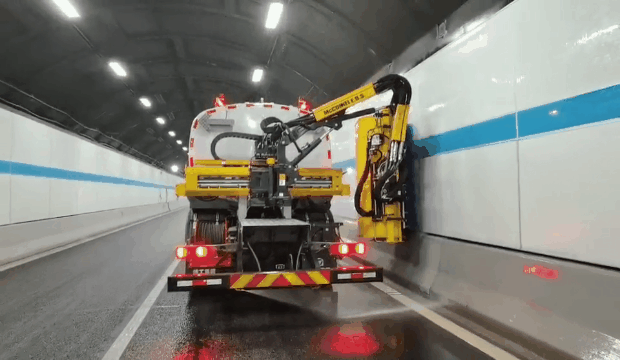

Based on this，XCMG wall cleaning vehicle came into being，The aim is to improve the level of comprehensive urban management in an all-round way.，Achieve full coverage of modern sanitation operations，This model is a special vehicle for tunnel wall and viaduct sound insulation screen cleaning.。

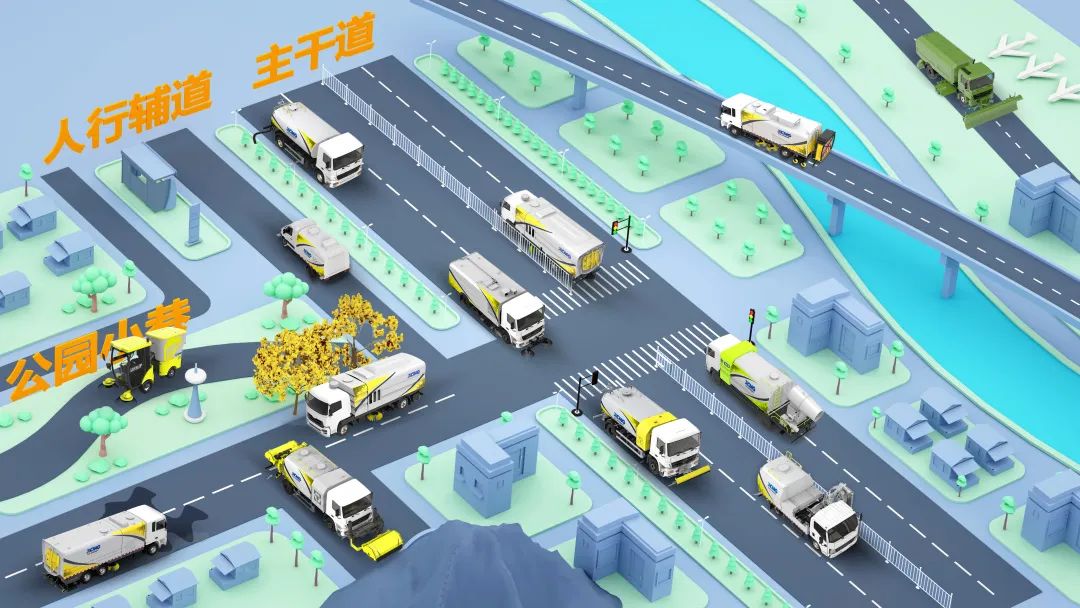

XCMG wall cleaning vehicle can be used together with other road cleaning equipment.，Form a three-dimensional cleaning scheme for bridges and tunnels。Combined with field conditions，The main road of bridge and tunnel can adopt“Rinse+Wash and sweep”Classic Operation Mode，The XCMG cleaning truck will clean the garbage along the road.，Then XCMG sweeper or sweeper is responsible for cleaning the curb and recycling garbage and sewage.，The wall cleaning vehicle is used to clean the wall quickly.，All-round three-dimensional cleaning of bridge and tunnel。

XCMG Road Cleaning Complete Solution

Extreme！Preferred quality，Born to be strong

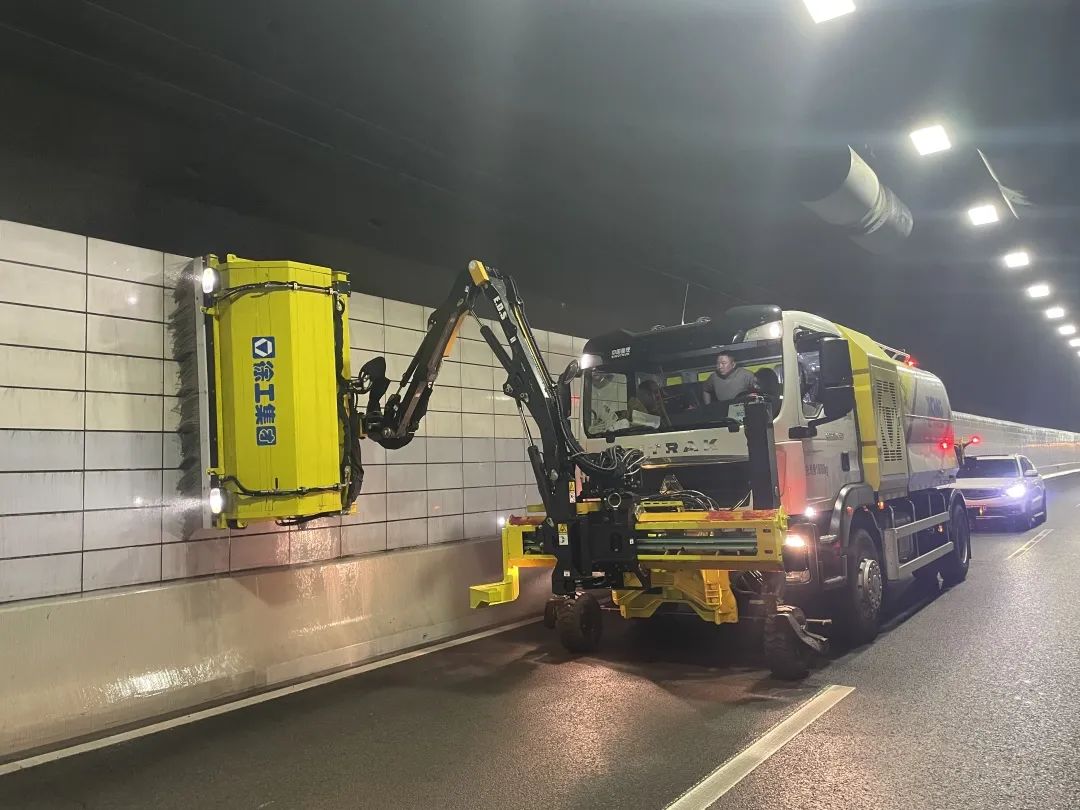

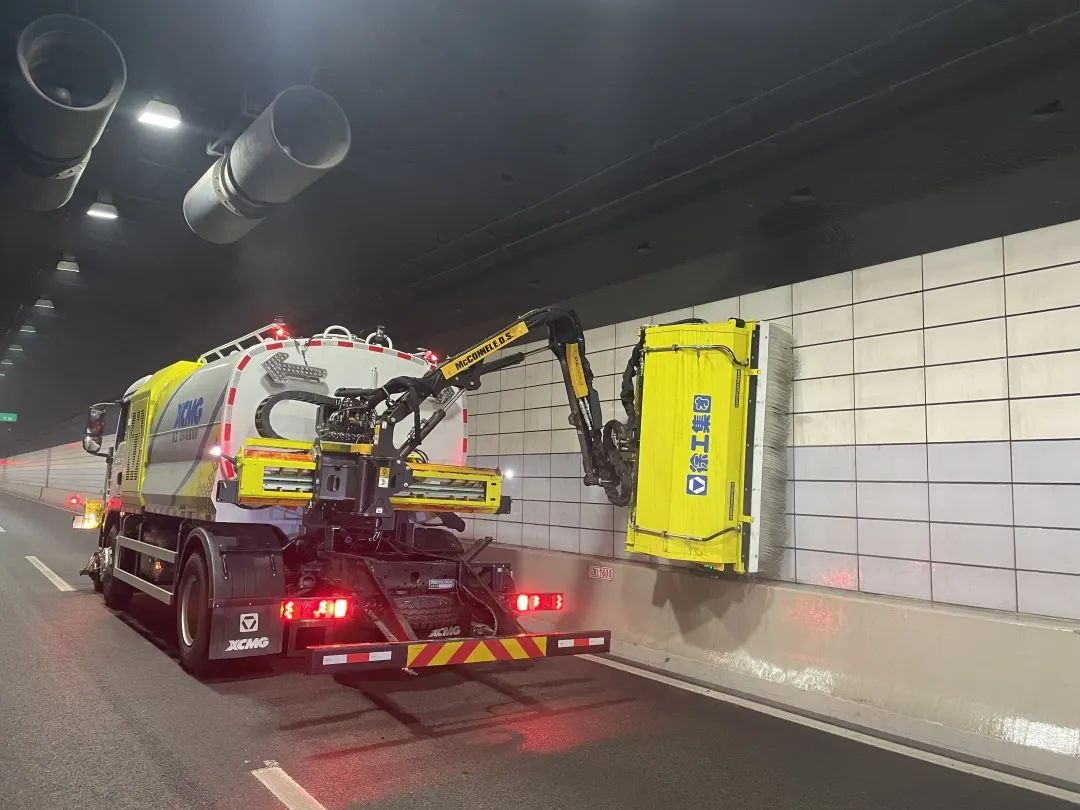

The whole vehicle is equipped with two sets of multi-section folding boom with mature technology.，Maximum boom extension height 5.5m，The front and rear booms can work simultaneously and can be controlled independently，Realize the left side of the wall、Clean the right side and both sides together，Solve the problem of many dead corners in the industry。Width of single cleaning roller brush 2m、Diameter 1m，The operation range is wide、And that operation efficiency is high，Up to 18000 square meters of wall surface cleaned per hour。

Advanced！Super clean，A new look

At the same time, it is matched with an independent high-pressure cleaning and washing system.，RealizationLow pressure pre-wetting+Brush+High pressure flushingEnhanced cleaning effect。Tank volume 10m³，The water pump can also be adjusted flexibly.，That is, the amount of water sprayed can be controlled according to the pollution condition of the working condition，Match different pressure and flow requirements，So that that wat consumption is effectively saved，The equipment can be guaranteedSingle brush continuous operation 160minAbove，Double-brush continuous operation 80minAbove。

Intelligence！The control is simple，Handy

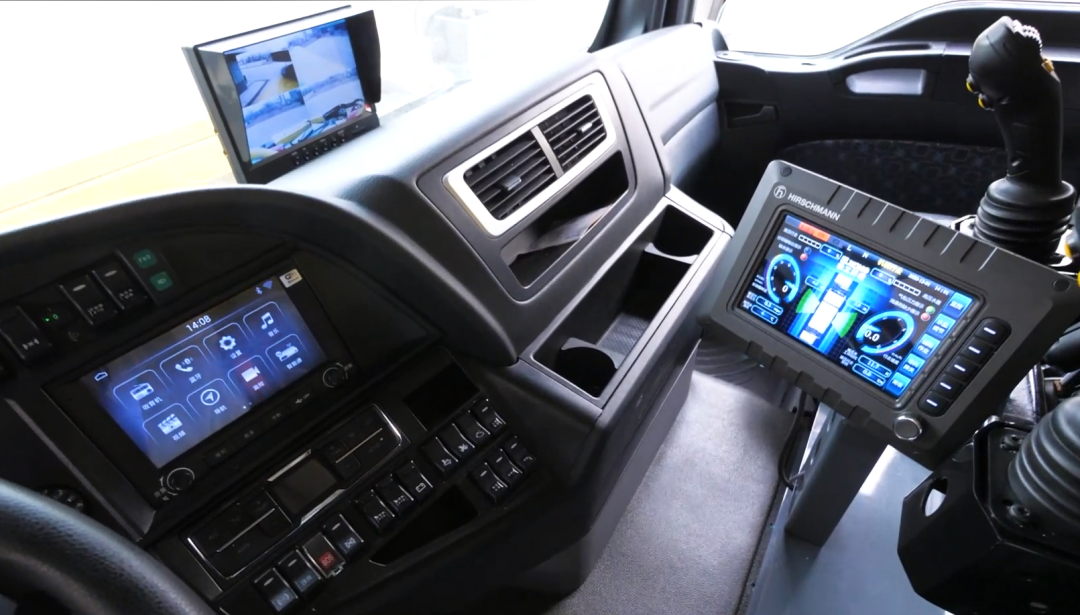

The rolling brush mechanism is provided withDistance cleaningFunction，The distance between the rolling brush frame and the wall surface is sensed by ultrasonic waves，And feed back to the upper control system，Perform automatic adjustment，Ensure that the roller brush is always close to the wall，And that clean effect is improved。Monitoring display screen is set in the cab，Real-time monitoring of job status。The whole vehicle is highly intelligent.，Nerve endings of extended product control system，ConfigurationMultifunctional proportional control handler，Meet different operating conditions。

Reliable！Two modes，Safe and stable

In operation mode，XCMG wall cleaning vehicle is driven by hydraulic traveling control system to realize low-speed stable driving，High-performance transfer case for travel system，Travel speed is 0-9km/h，Make sureLow speed and high efficiency cleaning。In transition mode，Maximum driving speed of the whole vehicle 89km/h，Quickly realize vehicle transfer。

XCMG stands all over the world、Perspective of Green Sustainable Development of the Whole Society，Actively implement the concept of national green development，Conform to the development trend of industry，It will continue to innovate and break through on the road of research and development of sanitation equipment.，Build a beautiful China，Make the world a better place！
